Honeywell MS-7120 Orbit Scanner
Honeywell
Overview
If you need an affordable, yet aggressive omnidirectional scanning solution that’s aesthetically pleasing to boot, the Honeywell Orbit MS-7120 is tough to beat. the Honeywell Orbit series scanners maximize your customers’ satisfaction and employees’ efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot, and a scan speed of 1,120 scans per second. Part of our Honeywell collection of scanners.
Oh No! This product is out of stock. Would you like to know when it's avaliable again?
Send this to a friend
Honeywell MS-7120 Orbit Scanner
- Features
Key Features - 20 Scan Line Omnidirectional Patter
- USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
- Adjustable Scan Head
- Automatic Scanning Operation

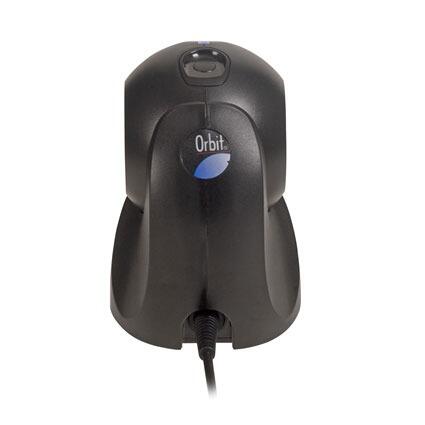

The Orbit series features an award-winning design that’s compact, lightweight, and rugged. Its shape enables handheld scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30-degree range to accommodate objects of various sizes and shapes.
Adjustable Scan Head
Tilt the scanner up to 30 degrees for targeted scanning or larger products.
Aggressive Scan Performance
With a 20-scan line omnidirectional pattern, Orbit scanners provide snappy scanning performance – a nice productivity booster in hand presentation applications.
Sweet Spot Scanning
Engineered “sweet spot” optimizes scan performance and first-pass read rates.
Automatic Scanning Operation
Simply present a barcode to Orbit and the unit scans in a single pass.
- Specification
Specification Dimensions (LxWxH) 105 mm x 102 mm x 150 mm (4.1˝ x 4.0˝ x 5.9˝) Weight 400 g (14.1 oz) Input Voltage 5 VDC ± 0.25 V Operating Power 900 mW (180 mA @ 5 V) Standby Power 850 mW (170mA @ 5 V) Host System Interfaces USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -40°C to 60°C (-40°F to 140°F) Humidity 5% to 95% relative humidity, non-condensing Drop Designed to withstand 1.2 m (4´) drops Environmental Sealing Sealed to resist airborne particulate contaminants Light Levels 4842 Lux Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; button activated single line (7180) Scan Speed Omnidirectional: 1120 scan lines per second; single line: 56 scan lines per second (7180) Print Contrast 35% minimum reflectance difference Pitch, Skew 60°, 60° Decode Capability Reads standard 1D and GS1 DataBar symbologies Warranty 3 year factory warranty
